Replacement Windows

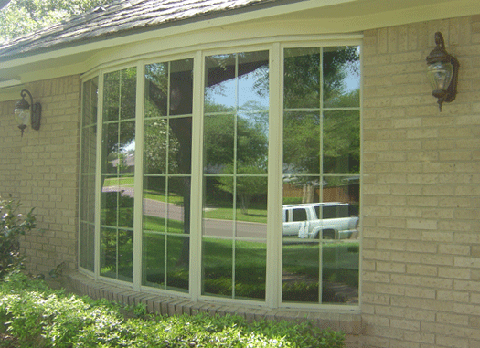

This is a white bow window in a narrow profile replacement window.  This unit in North Dallas is among the highest quality replacement windows made here in Dallas.  It is produced locally in North Texas and Mansfield with Cardinal 366 Low E Glass and Argon Gas from Cardinal Glass in Waco.

There are several different types of replacement windows.  Most manufacturers have very similar extrusions (components) that make up their replacement windows. I have dealt with them here as types, not manufacturers.  "Apples to apples" as it were.  Read about them, pick a type, then see what all our manufacturers say about their version of this type window.  Its your easiest way to see that you get the type and model and manufacturer that is best for your needs and your long term goals for your home.


Click on the titles for in depth commentary on the many types you see here.

Also, understand the story on exterior colors available in windows by visiting our WINDOW COLOR OPTIONS PAGE

Single Hung Vinyl Windows



Single Hung Vinyl Windows have narrower frames than do double hung vinyl windows.  These are low profile frames with just 2 1/4" of exposed frame as opposed to many frames that are up to 3 3/4" thick.

A great way to get a thermally sound insulated window at a great price.

One of our least expensive models.......but 30 to 50% more energy efficient than the ones your house was built with.

These can be the least expensive of all replacement windows that are Window Connection approved for all applications.

They vary in cost drastically depending on manufacturer, glass package, frame thickness, reinforcement technology, and most importantly....quality control.

Some manufacturers offer a builders grade vinyl single hung, while others offer a product that is truely "top of the line" from the glass package to the available options, to the thicker more substantial 3 1/4" main frame.

As a rule, you need to hang around 100 units of a product to have a really good picture of their overall quality, design, and warranty issues. We have four different manufacturers and more than 10 different choices availble for the single hung vinyl. All are amazingly energy efficient.

Assistance with product selection is always absoulutely free from one of our veteran window and door specialists.

A great way to get a thermally sound insulated window at a great price.

One of our least expensive models.......but 30 to 50% more energy efficient than the ones your house was built with.

These can be the least expensive of all replacement windows that are Window Connection approved for all applications.

They vary in cost drastically depending on manufacturer, glass package, frame thickness, reinforcement technology, and most importantly....quality control.

Some manufacturers offer a builders grade vinyl single hung, while others offer a product that is truely "top of the line" from the glass package to the available options, to the thicker more substantial 3 1/4" main frame.

As a rule, you need to hang around 100 units of a product to have a really good picture of their overall quality, design, and warranty issues. We have four different manufacturers and more than 10 different choices availble for the single hung vinyl. All are amazingly energy efficient.

Assistance with product selection is always absoulutely free from one of our veteran window and door specialists.

Single Hung Vinyl Replacement Windows often have tilting bottom sashes even though the top sash is stationary.

Double Hung Vinyl Windows



Double Hung Vinyl Windows are the most popular type sold currently.  They do have larger frames and less glass than their Single Hung Vinyl counterparts.

This is the replacement windows we sell the most of overall.  Very cost efficient.  Plenty of bang for the buck. The insulated glass in these units is literally twice as thick as the less expensive models out there.  The thickest retro-fit frames available as well as high performance glass and argon gas filling available. These are our most popular windows.

Little known facts about Double Hung Vinyl Replacement Windows:

Single Hung Vinyl Replacement Windows usually are more energy effecient by virtue of the top sash being glued in place.

Taller windows are usually "oriole" style with a taller top sash than the bottom sash making a half screen on the bottom not effective for the top sash. Also the top sash of a 72" window being 40" tall or so is somewhat cumbersome to tilt in for cleaning.

Tilting top and bottom sashes are a great feature of the double hung replacement window BUT, if you have interior shutters mounted on the home you will probably not be able to tilt the sashes for cleaning. Be sure to get a window that allows for screen removal without tilting sashes.

Did you know that the fatter the frame of the window, the higher the performance ratings? This is true and a variable not mentioned in most literature or online comparison information. Some vinyl windows have main frames as narrow as 2 1/4" while many frames are as thick as 3 3/4". This is a huge variable especially in North Texas where many windows are just 24" wide. Also a huge variable in sidelites of doors as well as bay and bow windows.

Did you know that a window will perform better as to performance on its sticker if you remove the steel or aluminum reinforcements that are designed to strengthen the lift rails? (We do not recommend this approach to achieving energy effeciency as the lift rails and locking rails are only 1 1/2 inches thick and get the majority of their rigidity over the long term from being glued to the glass coupled with the steel reinforcement..) After years of usage it is easy to tell which windows were reinforced and which windows were not.

Did you know that foam filling usually will increase the efficiency of a window less than .3% and can seldom affect the overall performance numbers of a given product according to the NFRC ratings of most window manufacturers available in North Texas and Dallas specifically.

The performance numbers of a given product as denoted on NFRC website and on manufacturers websites can vary based on key window options including: Size of the window; internal grids, external simulated divided lites, or no grids at all; Slider vs Vertical Operator; Single Hung vs Double Hung; Spacer upgrades; optional glass package upgrades; tempering of the window etc.

Single Hung Aluminum Windows

Thermally Broken Aluminum Window - Single Hung

First Understand the two types of Aluminum Windows

Non-Thermally Broken Aluminum Windows

These are usually builders grade type products

Great for rental properties or the property that you're about to put on the market.  Our least expensive model is the non-thermally broken aluminum replacement window.

These can run as little as $250 each installed.  They are not a recommended product if you live in a home that appraises over $100,000 or a home that you will live in for three or more years.

Know that at The Window Connection, we charge the same labor for installation of any products. Product cost is always the variable in a project. Helping you find the right product is always about our commitment to customer service and your end satisfaction.

Thermally Broken Aluminum Windows

A commercially rated C-35 unit with tilt in bottom sash, high performance glass and a wonderful usability.These are great in several applications. They are great for unusally tall windows, windows that need a dark brown color on the exterior, and many homes that are valued over $300,000.

Well sell alot of this product in The Canyon Creek and Richardson areas of North Dallas.

Double Hung Aluminum Windows

Double Hung Aluminum Thermally Broken Windows

These are the cool ones for sure.  Custom Sized, Thick Glass, Double Tilting Sashes, Full Screens, Low-E Glass, Argon Gas, Thermally Broken Sash and Main Frames. I think this is among the best windows available today. The frames are a bit thick in appearance.

This product is usually thought of as my most commercial looking type product. I do confess it is the one in my office as it's a bit of a tank and I like that alot. The fat frame is a drawback for many homeowners.

This product requires a full screen and does not qualify for the tax credit from the 2009 Stimulus Package of $1500 or 30% of the materials cost on qualified window and door purchases.

This product does look very substantial and is easily a 50 year product. It is available in White, Beige and Dark Brown or Bronze colors. Note that Bronze in the window industry is not like door hardware or metal but rather like a commercial storefront that is very dark brown in color.

Note that the thermally broken frame is to prevent the conduction of heat and cold through the metal frame. This is a lifetime warranty product as is the glass. Glass in this product is also warrantied for life.

Thermally Broken Aluminum Windows

This is my primary product in Commercial Windows here in Dallas.





Wood Windows

Wood Window with Simulated Divided Lites

Andersen's and Pella's have the name recognition......but there are some drawbacks and labor concerns.....have a look at the real inside story.  These higher end products can be costly for the retro-fit installation. They are beautiful and require the utmost in carpentry skills. No one is better with wood than The Window Connection.

Bay and Bow Windows

Vinyl Bay Window Dallas Texas

There are several approaches to most retrofit bow units.  If you're replacing one you already have or installing a new outlook on an existing window. these are a beautiful addition to any home. We pride ourselves on being among the best at this specialty. Our Porto-Bender can custom fabricate trims to any dimension as is necessary to make every detail and line perfect. See our Bows and Bays Portfolio for some wonderful pictures of what a new bow or bay can do for your home.
